Name: Mounted or trailed 4-row cup planter
Brand: Dewulf

Maximum versatility

The CP 42 is a multipurpose 4-row cup planter. The mounted or trailed machine is available with a wide range of options and can be easily tailored to your specific needs. The use of cage rollers or a ridging hood makes the CP 42 suitable for any type of soil. By combining seedbed preparation, planting and ridging in one working pass, the planter excels in ease of use. The large bunker and the potato-friendly planting elements complete this top tier planter.

Planting with the highest reliability and efficiency

The CP-series cup planters are designed for potato growers who demand the most reliable planting precision. One of the cornerstones of this precision is the unique Miedema planting element found in each CP. Every grower can work more efficiently thanks to the high planting capacity, low maintenance costs and exceptionally simple control system of our Miedema planters. The CP is also perfectly suited for combining multiple operations in a single working pass. This saves you labour, machines and fuel.

Precision farming within easy reach

By making use of GPS support, the CP can map out the parcel. The control system ensures precise planting. Thanks to our Precision-Planting system you are assured perfect placement of the seed potatoes, with even spacing, at the correct depth and in a single line in the middle of the ridge. Moreover, with the Miedema planters you can also perform place-specific planting, granulate spreading and fertilising, all independently of each other.

5 variants based on your needs

Our reliable and extremely precise CP 42 cup planter is available in 5 variants.

5 variants

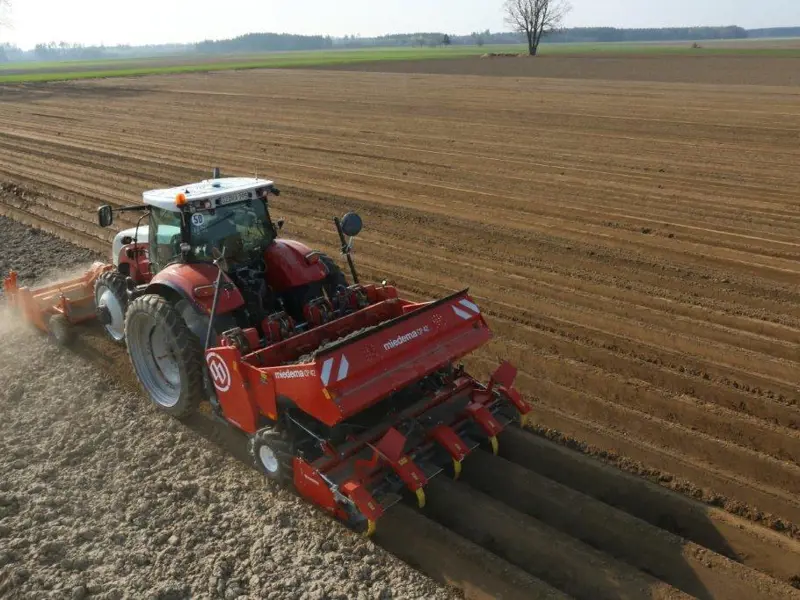

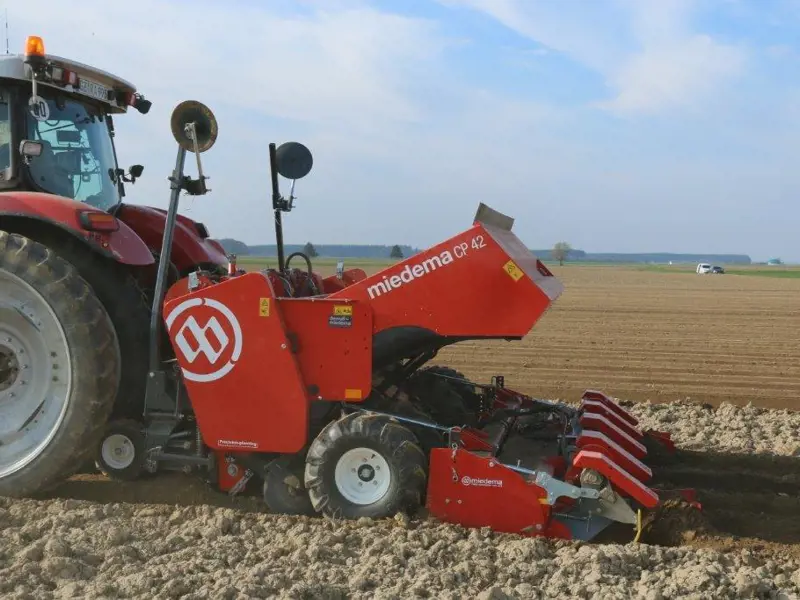

CP 42 L

Mounted version

Short and manoeuvrable: ideal for small headlands

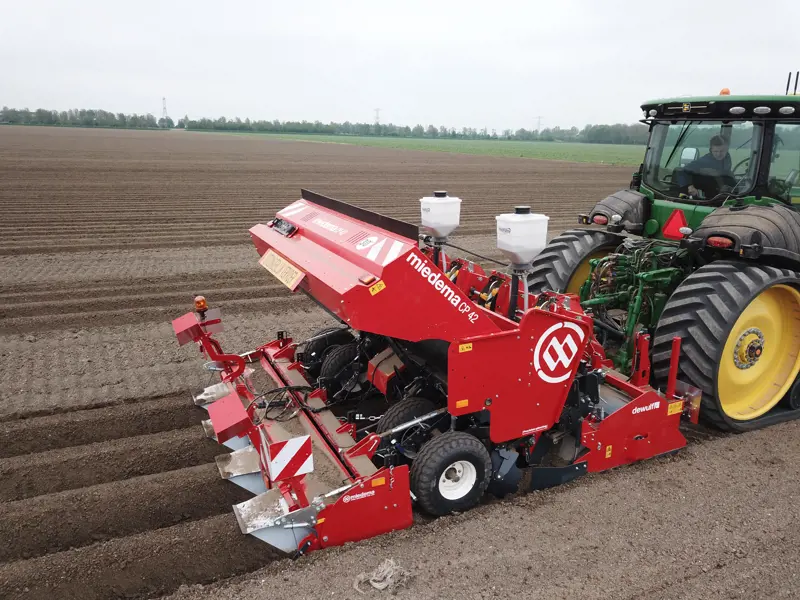

CP 42 L + SC Compact

Mounted version

SC Compact cultivator

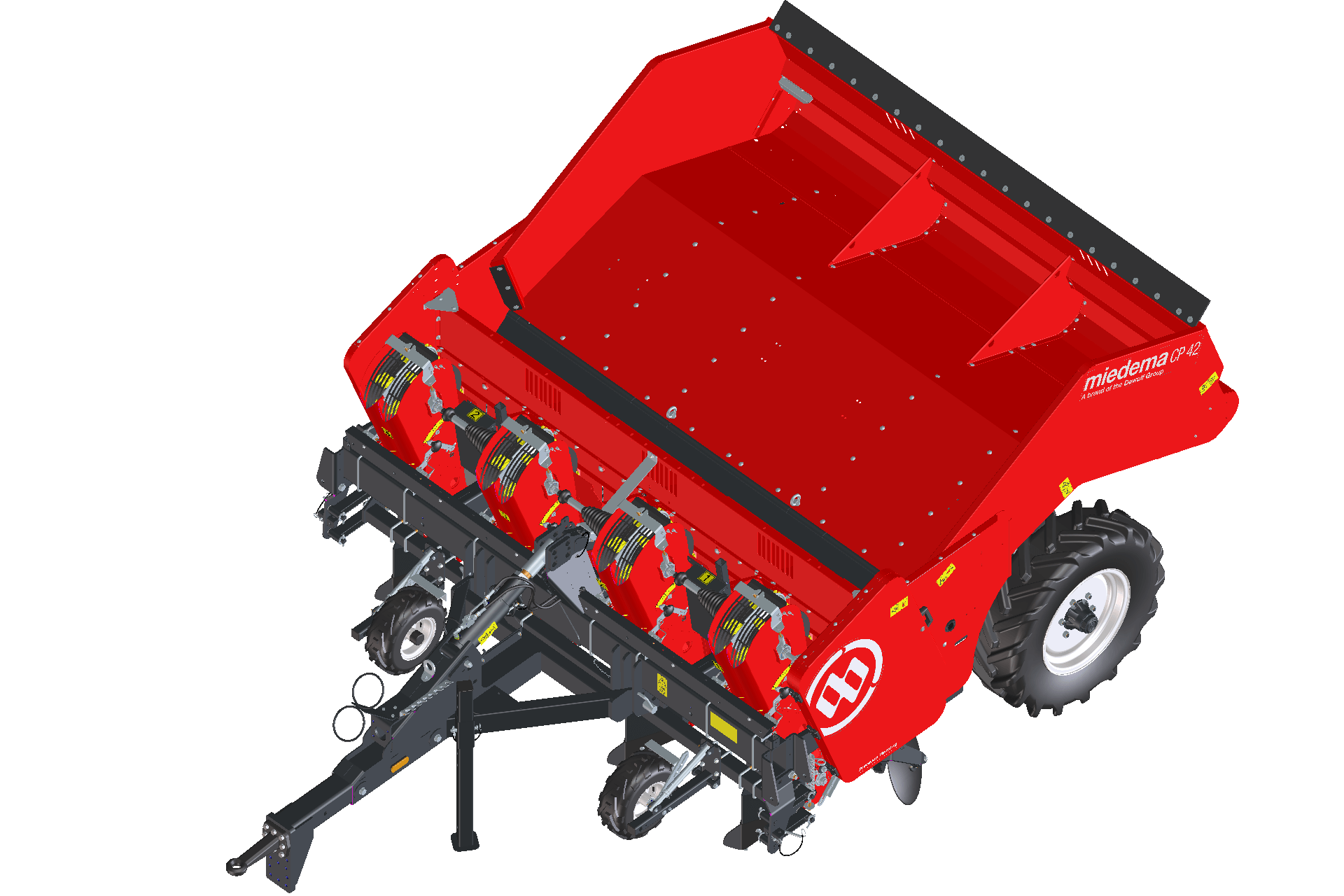

CP 42 P

Trailed version

Large bunker capacity of 3.6 tonnes

Planting can be combined with adding fertiliser, spreading granulate, spraying and/or ridging

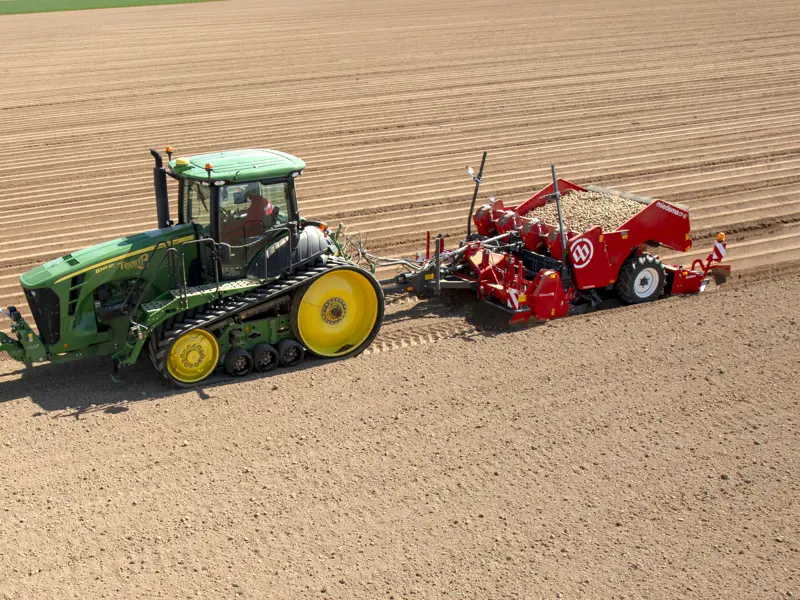

CP 42 Smart-Float

Fully automatically maintains constant working depth of the integrated soil cultivation system

Saves time, money and man hours by combining seedbed preparation, planting and ridging in one working pass.

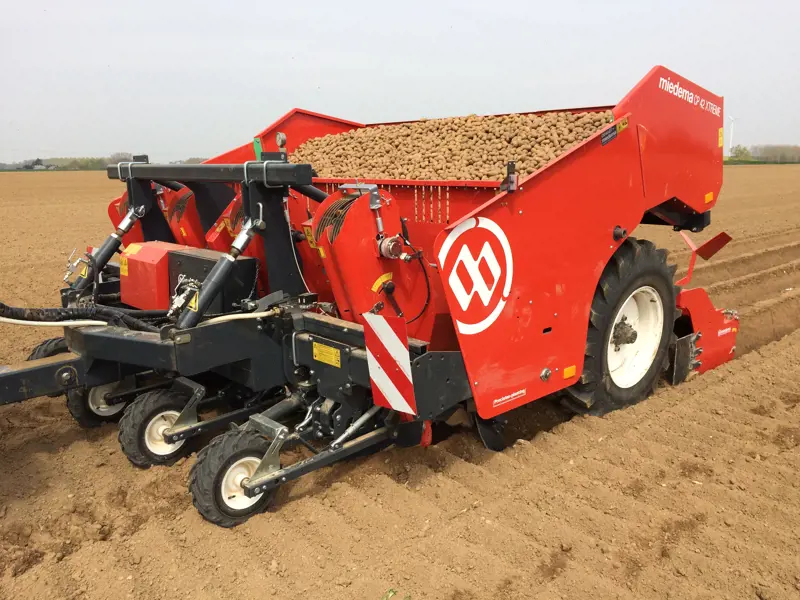

CP 42 Xtreme

Variable row distance (70 - 96 cm)

Very large bunker capacity of 4.5 tonnes

■ = standard
o = Optional
- = Not applicable

CP 42
	Lifted	Trailed	Smart-Float	Xtreme
Row spacing	75 cm or 90 cm	75 - 90 cm	75 - 90 cm	75 - 101 cm
Hopper type	Fixed or tipping	Tipping	Tipping	Tipping
Hopper capacity 75 cm row spacing [kg]	1200 (fixed) 1850 (tipping)	3000	3000	4500
Hopper capacity 90 cm row spacing [kg]	1400 (fixed) 2000 (tipping)	3600	3600	4500
Drive	Mechanical or hydraulic	Mechanical or hydraulic	Hydraulic	Hydraulic
Various sizes planting cups	■	■	■	■
Cleaning brushes in planting cups	■	■	■	■
Precision-Planting	■	■	■	■
Manual tramline control	■	■	■	■
Row-Stop	o	o	o	o
Ridging hood	o	o	o	o
Ridging ploughs with cage rollers	o	o	o	o
MR-Control 1 or 2 sensors	o	o	o	o
Bridge drawbar/hinged drawbar	-	o	-	o
Eagle-Eye miss detection(for hydraulic)	■	■	■	■
Spray line set	o	o	o	o
Granulate spreader	o	o	o	o
Powder unit	o	o	o	o
Ferti-Flow row fertiliser	-	o	-	o
HMI GPS Planting-Comfort/Control	o	o	o	o
Erosion-Stop	o	o	o	o
