Higher capacity with less trailers
With the MH 242 Efficient Logistics receiving hopper you improve the efficiency of your storage line and the utility of trailers considerably. The buffer function ensures constant output of this receiving hopper combination, at both lower and high capacity. The trailer can be quickly unloaded into this specially designed receiving hopper, after which the product is transferred to a connected MH 241 in a product-friendly manner for further cleaning and possible pre-grading.
Thanks to the Efficient Logistics receiving hopper, you can transport the harvested product from the field to the store with fewer trailers, because the waiting times for unloading are reduced.
See the MH 242 Efficient Logistics in action
Why choose for MH 242 Efficient Logistics
- Constant output of the product
- Minimal waiting times for trailer unloading
- Very high capacity (150-200 ton/hour)

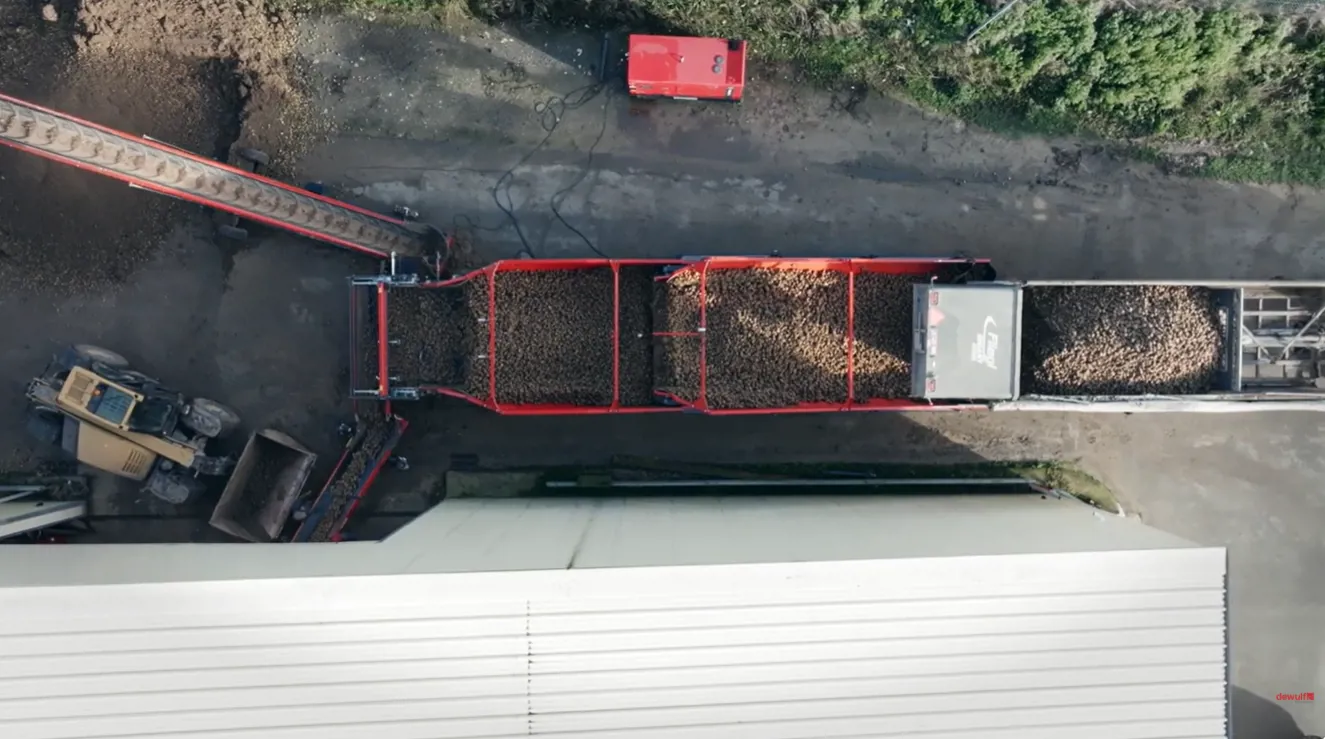

MH Efficient Logistics + MC 780 S + MC 1780 + ML 2280
Configure your machine
Create the MH 242 Efficient Logistics based on your preferences and requirements. Save your result and request a quote in 1 click!
Photo gallery
Other receiving hoppers
Technical specifications
- ■ = standard
- o = Optional
- - = Not applicable
| Largest width [cm] | 379,5 |
| Height [cm] (depending on the options) | 389 |
| Entry width [cm] | 334 |
| Live bottom width [cm] | 240 |
| Live bottom length [cm] | 750 |
| Effective hopper volume [m³] | 26 - 28 m3 |
| Live bottom speed [m/min] | 0,1 - 4,6 |
| Maximum driving speed [km/h] | 6 |
| Variable input board | o |
| Extra rubber sealing guard | o |
| Start/Stop with IR sensor level control | o |
| Automatic chain lubrication | o |
| Navigation light on tipping trailer | o |
| MH-Control | o |
| Start-Control functionality | ■ |
MH 242 Efficient Logistics is suited for these crops:
Potatoes
Carrots
Onions
Red beet
Parsnip
Turnips
