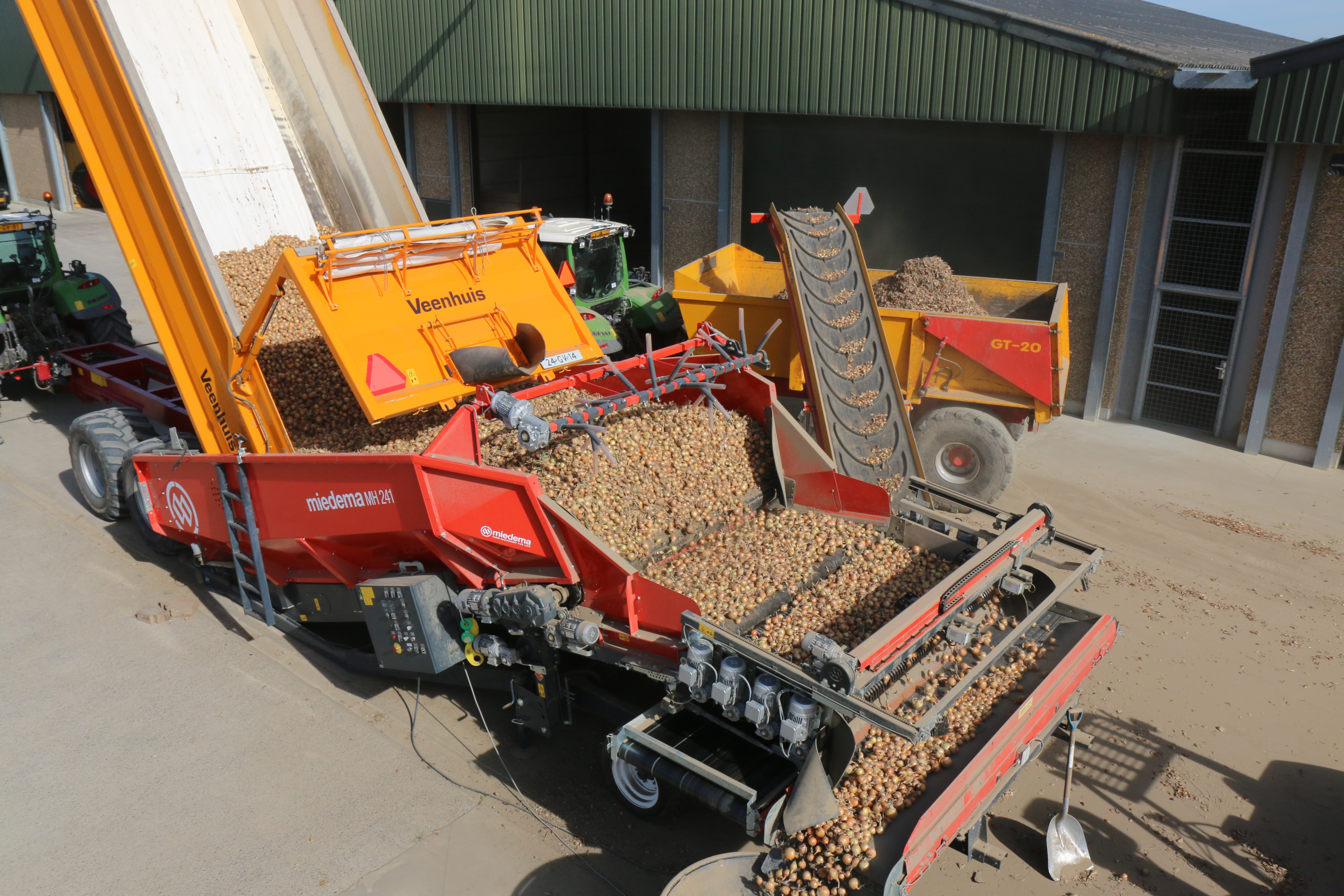

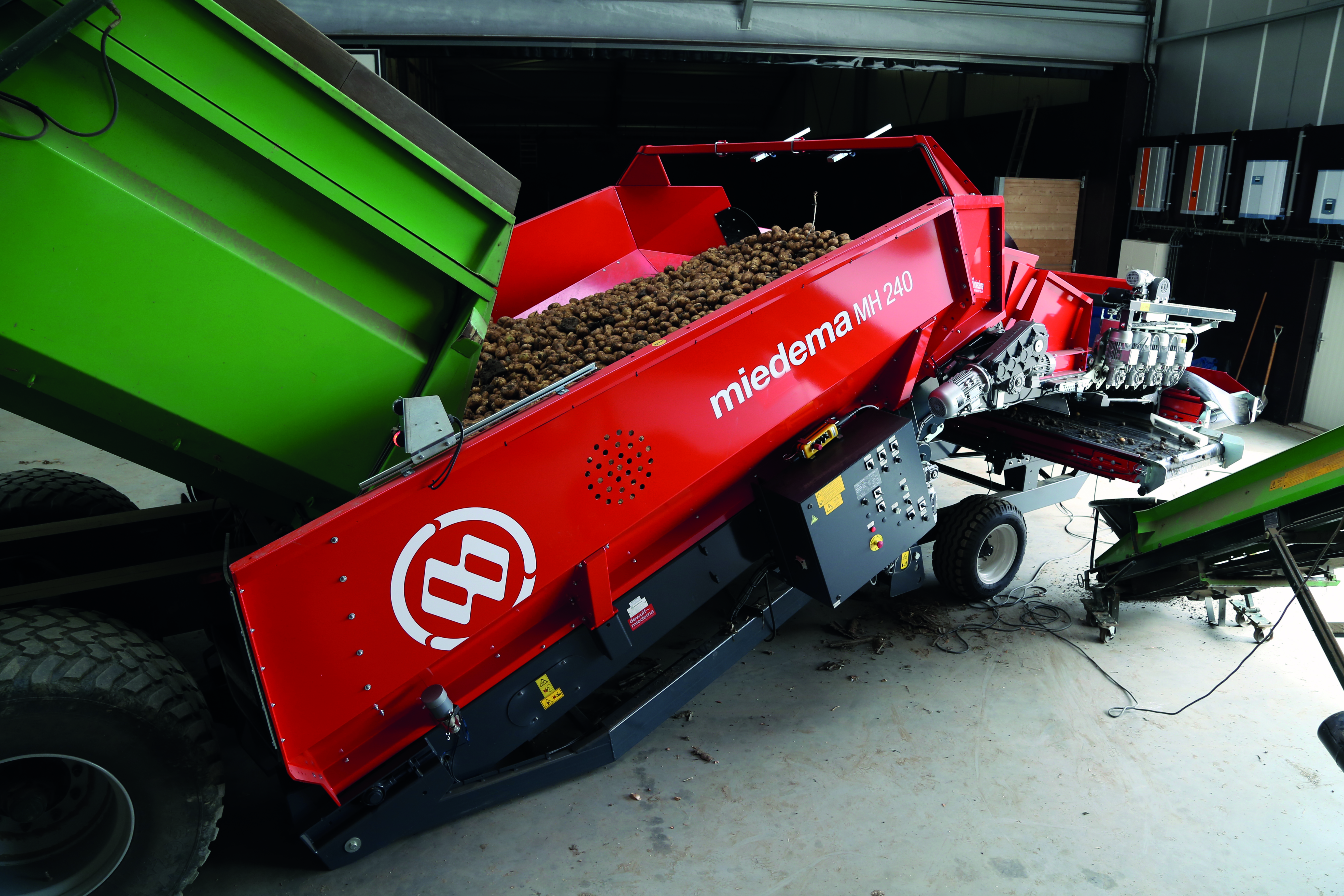

The Miedema receiving hoppers form the basis for reliable storage. The receiving hopper serves as a buffer and provides the cleaning and, if desired, sorting of your product. Our receiving hoppers are your guarantee for product-friendliness, capacity and versatility. And most importantly: The operating costs always remain pleasantly low. Additionally, due to the various machine options, the machines of the MH series have been developed for exacting users.
Easy to operate
The control panel of the MH series receiving hoppers by Dewulf utilise pictograms, as a result of which they are very easy to operate. The wired remote control included as standard increases this degree of comfort even further. Moreover, all machines are equipped with Start-Control. The useful, automated MH-Control capacity regulation with two sensors and four stop programs additionally makes the work even more enjoyable.
Heavy-duty and product-friendly
The MH series excels in regard to robustness. The special support on the intake end prevents the sagging of the bunker floor, as a result of which the use of large trailers does not pose a problem. The heavy-duty, especially hardened bunker chain guarantees a maximum service life with a minimum degree of maintenance. The product-friendly bunker floor has an excellent carrying effect.
Built-in cleaning and sorting by product size
In regard to our receiving hoppers, you can choose to clean and/or sort downstream of the receiving hopper or to place this function in a receiving hopper. The gap width and the position of a roller unit can be set accurately. You can equip the standard product range with up to two roller units according to your wishes. You can achieve the desired degree of cleaning with the cleaning rollers. With the sorting rollers, you can separate your product according to size and in this manner add an additional value to your product.
What makes the MH series stand out

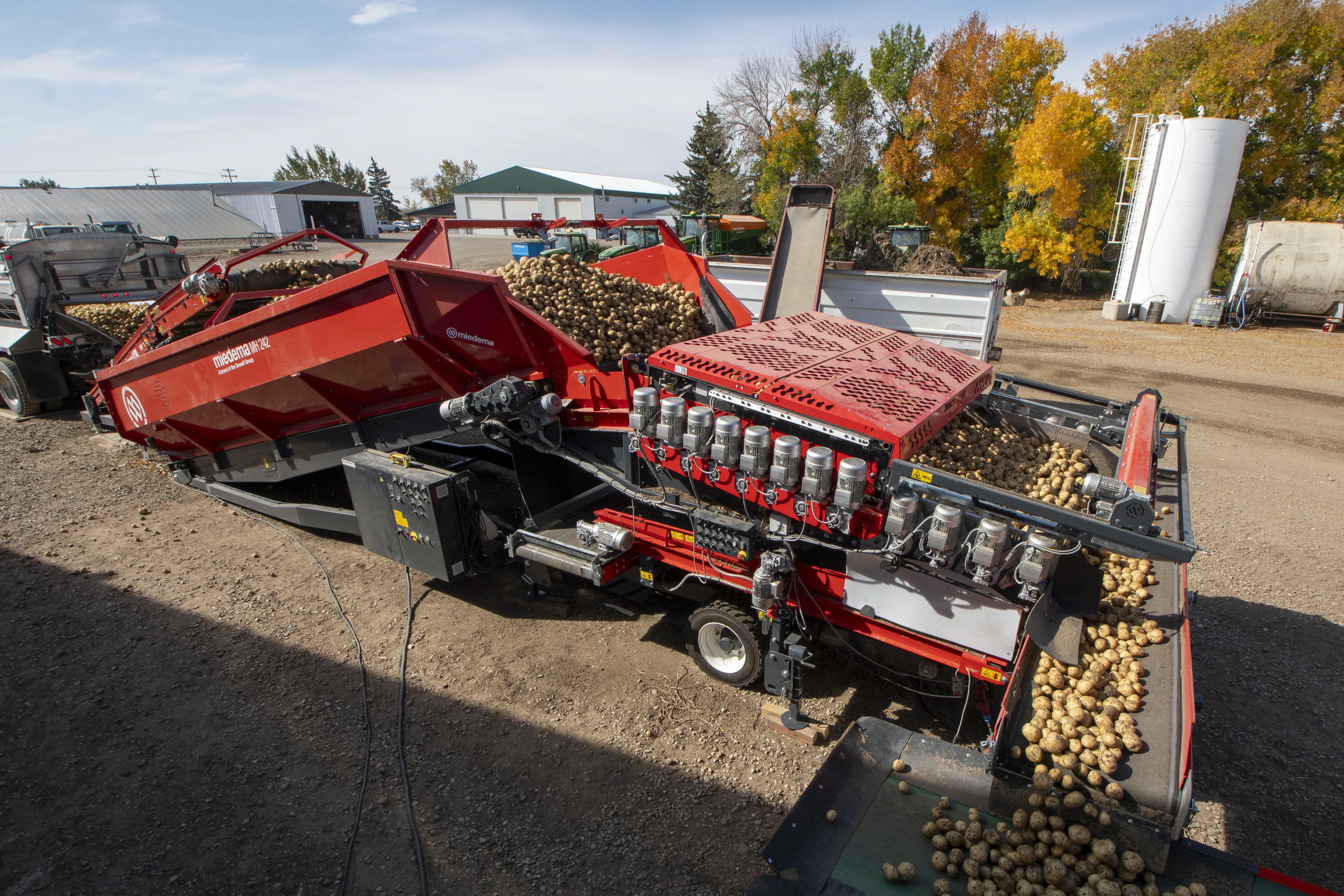

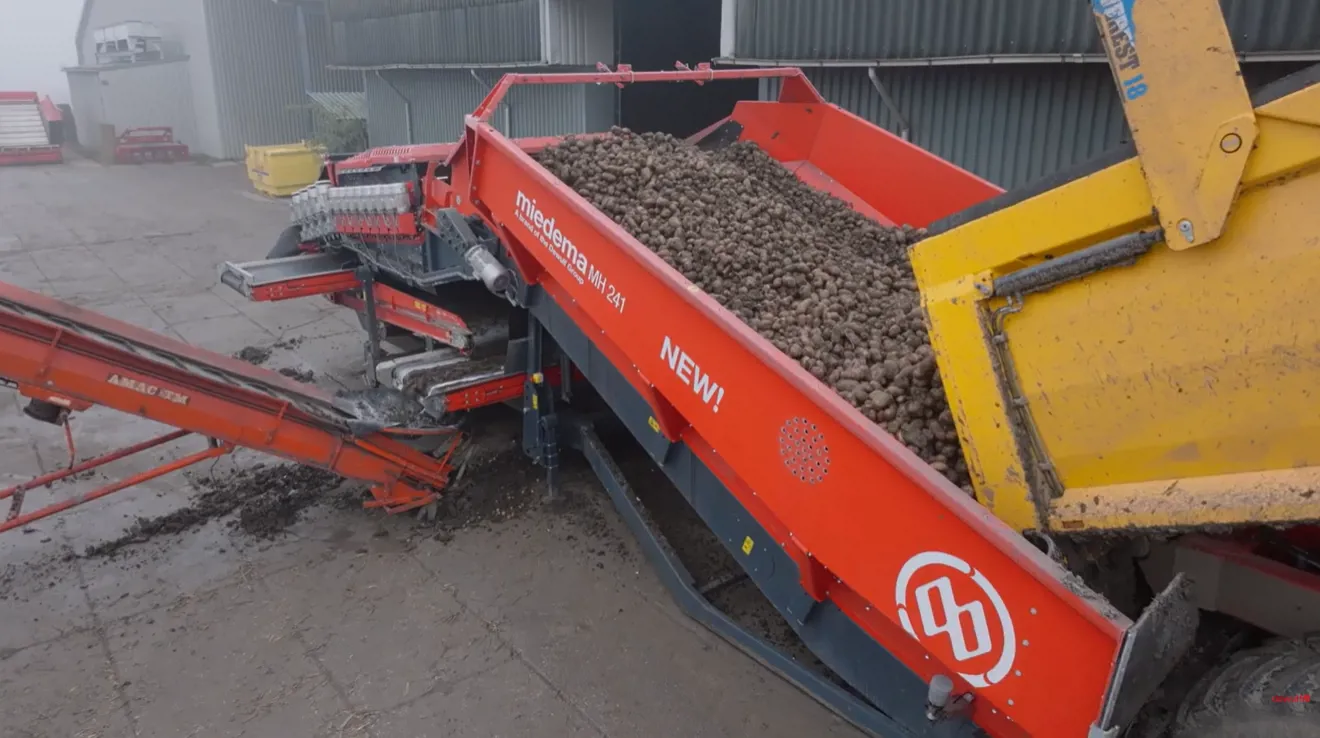

The first cleaning unit of the MH series can be configured with up to 16 rollers(!) for maximum cleaning. If you want to use PU-rollers optimally, the Clean-Boost cleaning option is a good choice: the speed of our electrically driven PU-rollers is briefly increased to rid them of sticky soil. You are faced with long product or heavy soil? The optional presentation belt ensures an even spread and dosage for efficient cleaning. These are, of course, just some of the useful features with which our MH range of receiving hoppers helps you to ensure optimum capacity at all times.
Tailor-made solution? No problem

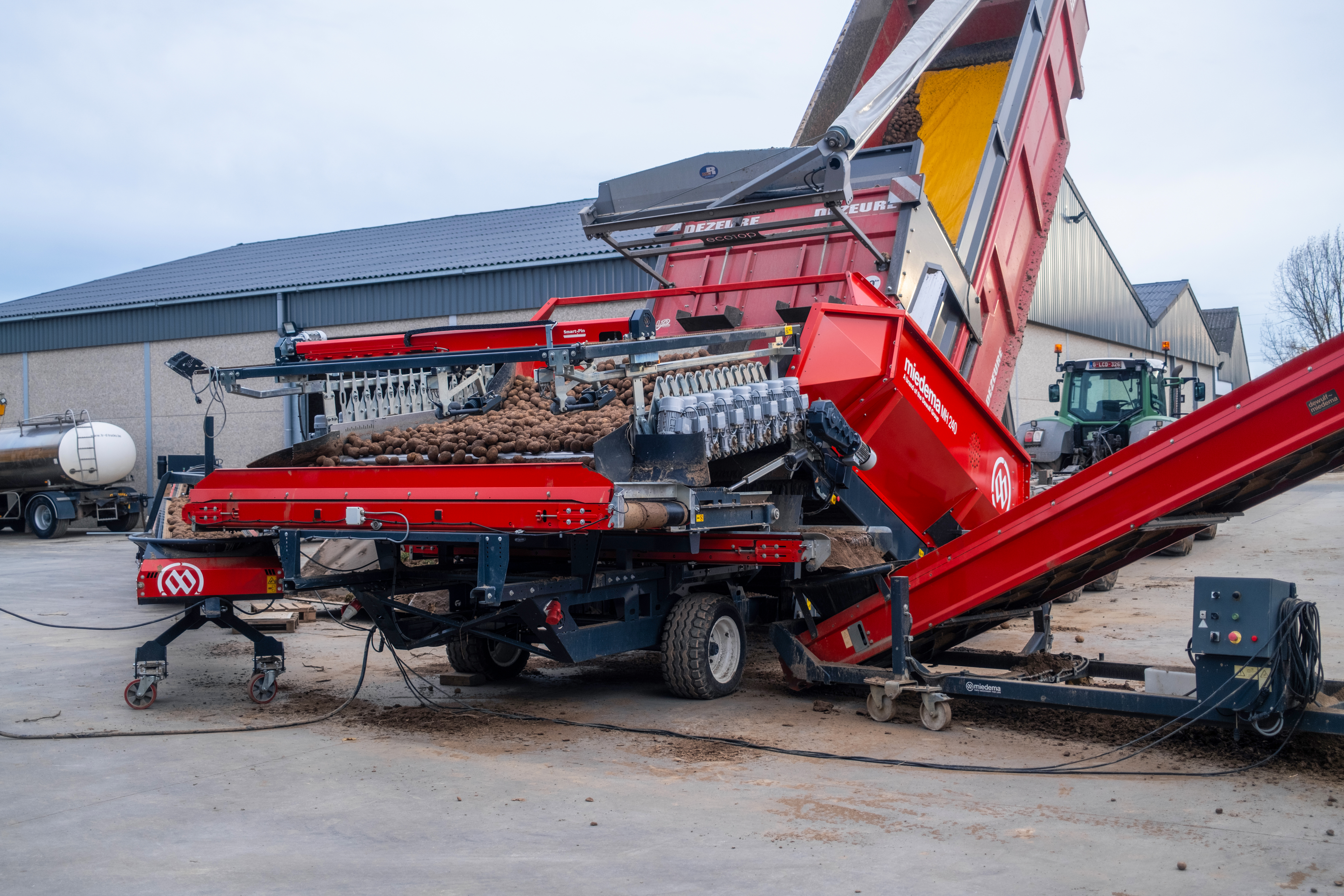

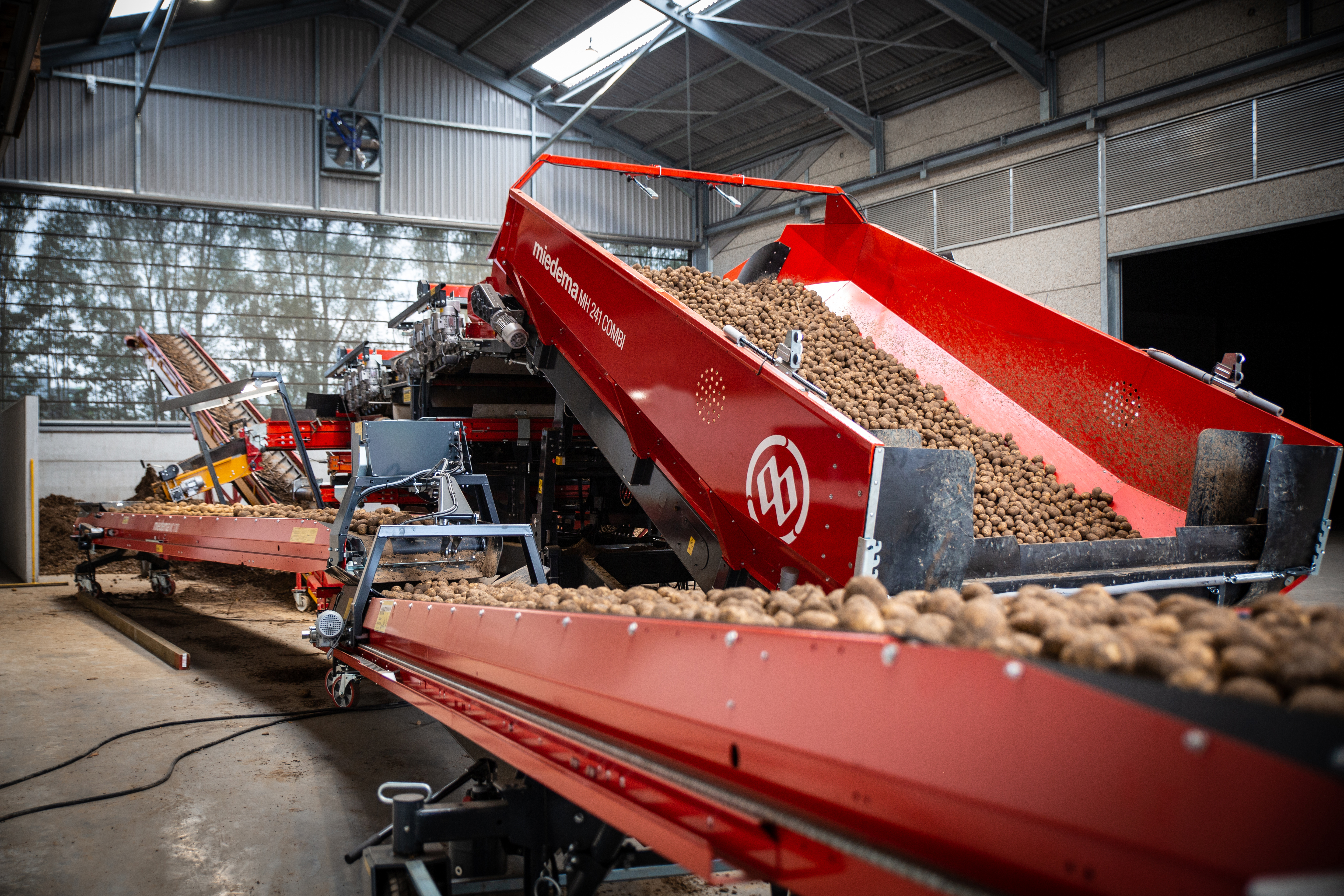

The MH series is highly suited as a combination machine, the MHC (Combi). An MHC receiving hopper is a combination made according to a customer’s wishes for the reception, buffering, cleaning, sorting, inspecting and transporting. Because all machine parts are positioned on a single chassis, all mutual settings are maintained. In this manner, you can easily achieve the maximum capacity and optimal product-friendliness. Dewulf can offer a tailor-made solution for the storage needs of any customer.
The right variant for you

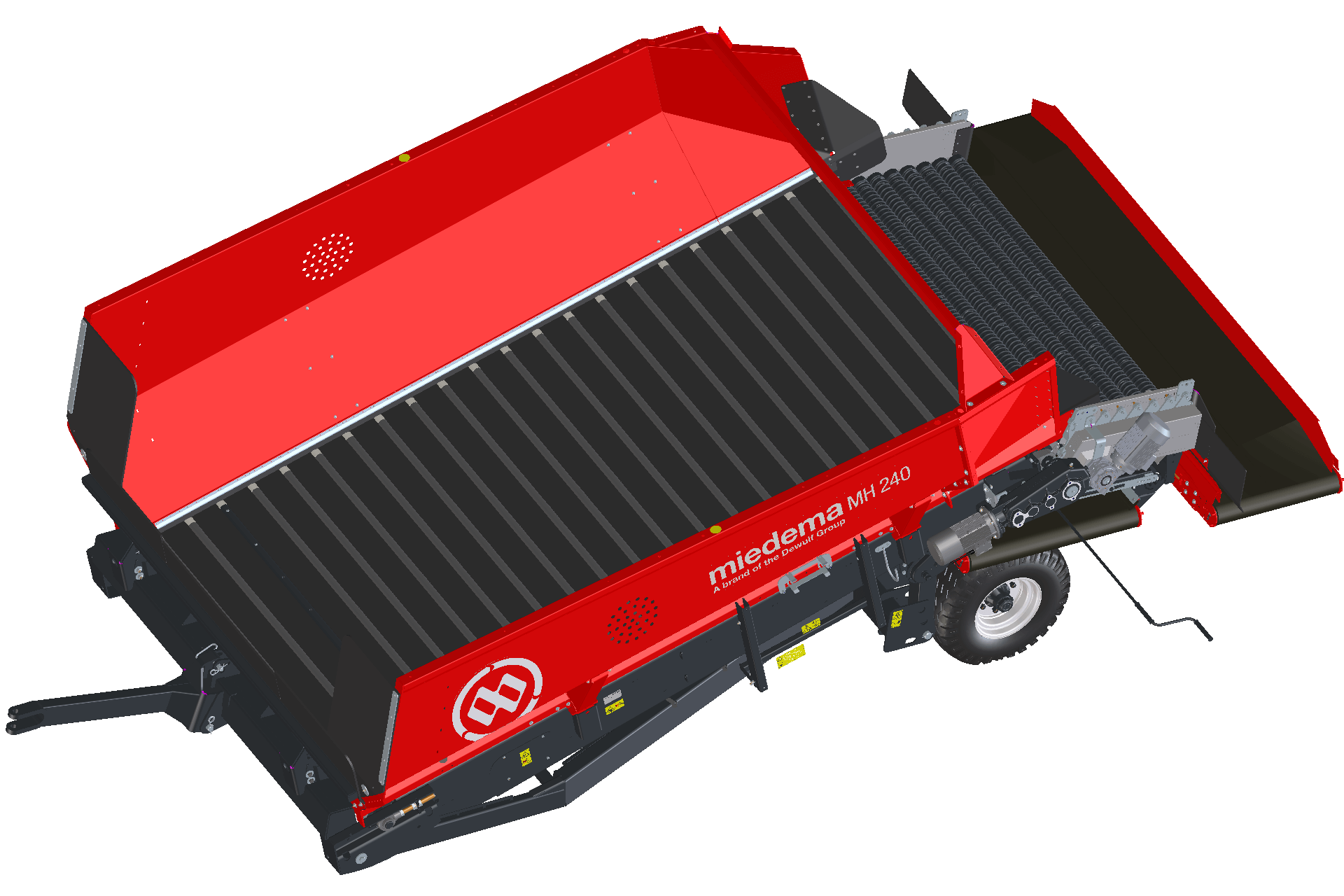

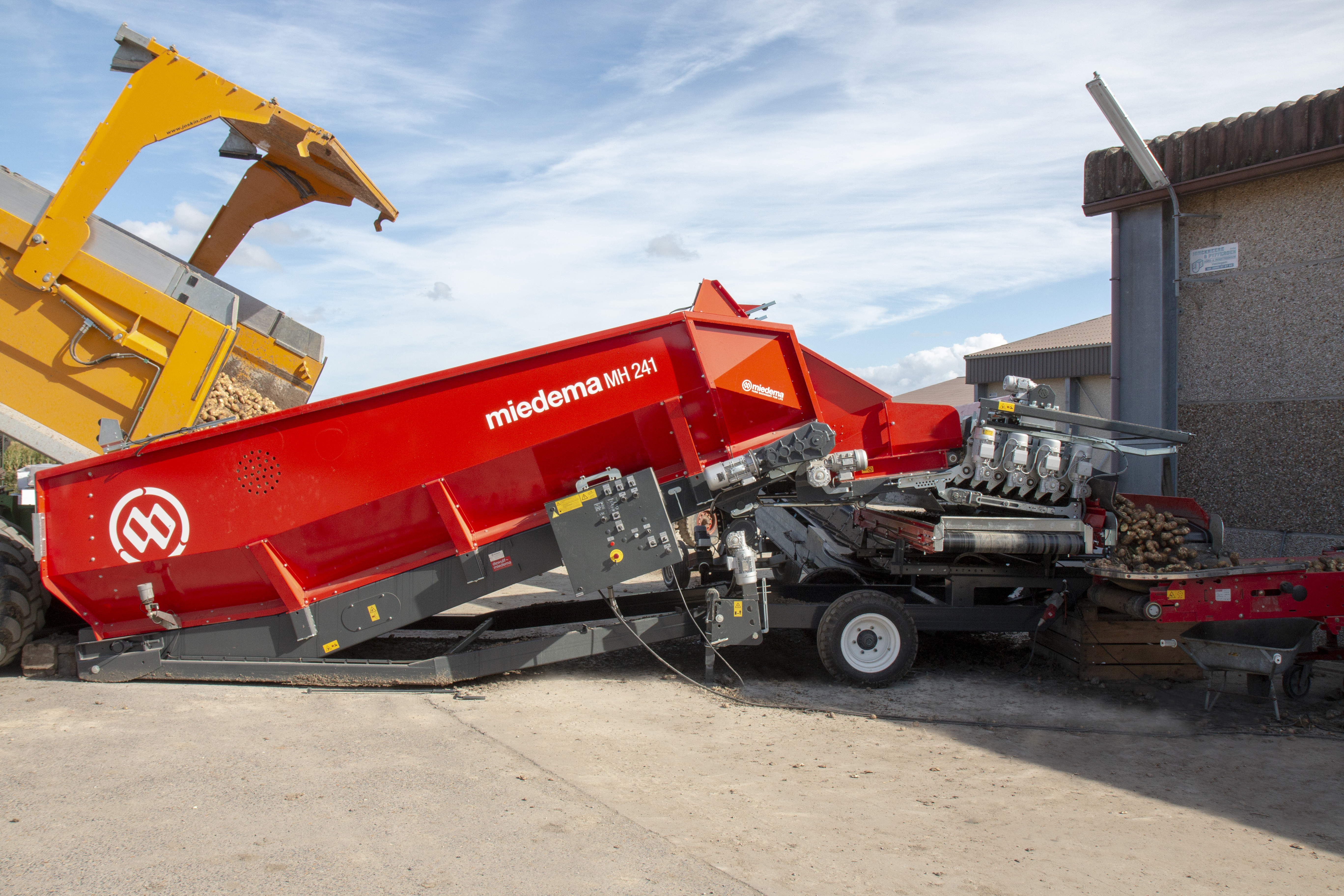

The MH 24X receiving hopper additionally has 3 variants in order to optimally meet your capacity requirements.
Bunker capacity of 13-15 m³
Ideal for growers that desire a buffer capacity in spite of limited available space
Bunker capacity of 18-20 m³
Due to the nodding section on the intake end, it is highly suited for various tipping trailers
For large storage companies and growers
Bunker capacity of 26-28 m³
Helps you to reduce your transportation needs by one transport vehicle
■ = Standard
o = Optional
- = Not applicable
Largest width [cm] (without discharge belts)
Height [cm] (depending on the options)
300 - 370
300 - 370
300 - 370
Entry width [cm]
Live bottom width [cm]
Live bottom length [cm]
Effective hopper volume [m³]
13 - 15
18 - 20
26 - 28
Live bottom speed [m/min]
0,1 - 4,6
Maximum driving speed [km/h]
Variable input board
Extra rubber sealing guard
Start/Stop with IR sensor level control
Automatic chain lubrication
Navigation light on tipping trailer
Receiving detection MH for tipping trailer
Cleaning & sorting
Roller unit with 6, 7 or 8 rollers
2nd roller unit with 6, 7 or 8 rollers and intermediate belt
Roller unit with chain drive, 2 speeds
Roller unit with chain drive, variable speed
Roller unit with mono-drive, variable speed
Metal or PU coil rollers
Star rollers with 7 or 11 fingers
Power outlet (5 A) on machine
High-speed cleaning of PU rollers
Ideal for optimal performance with long or sticky product
