Name: Self-propelled 4-row sieving harvester
Brand: Dewulf

Discover the capacity of a true 4-row harvester

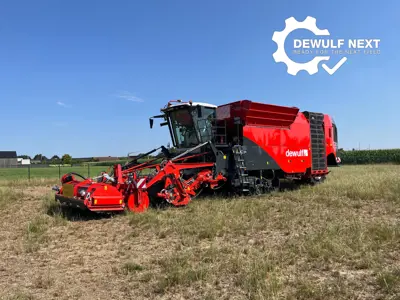

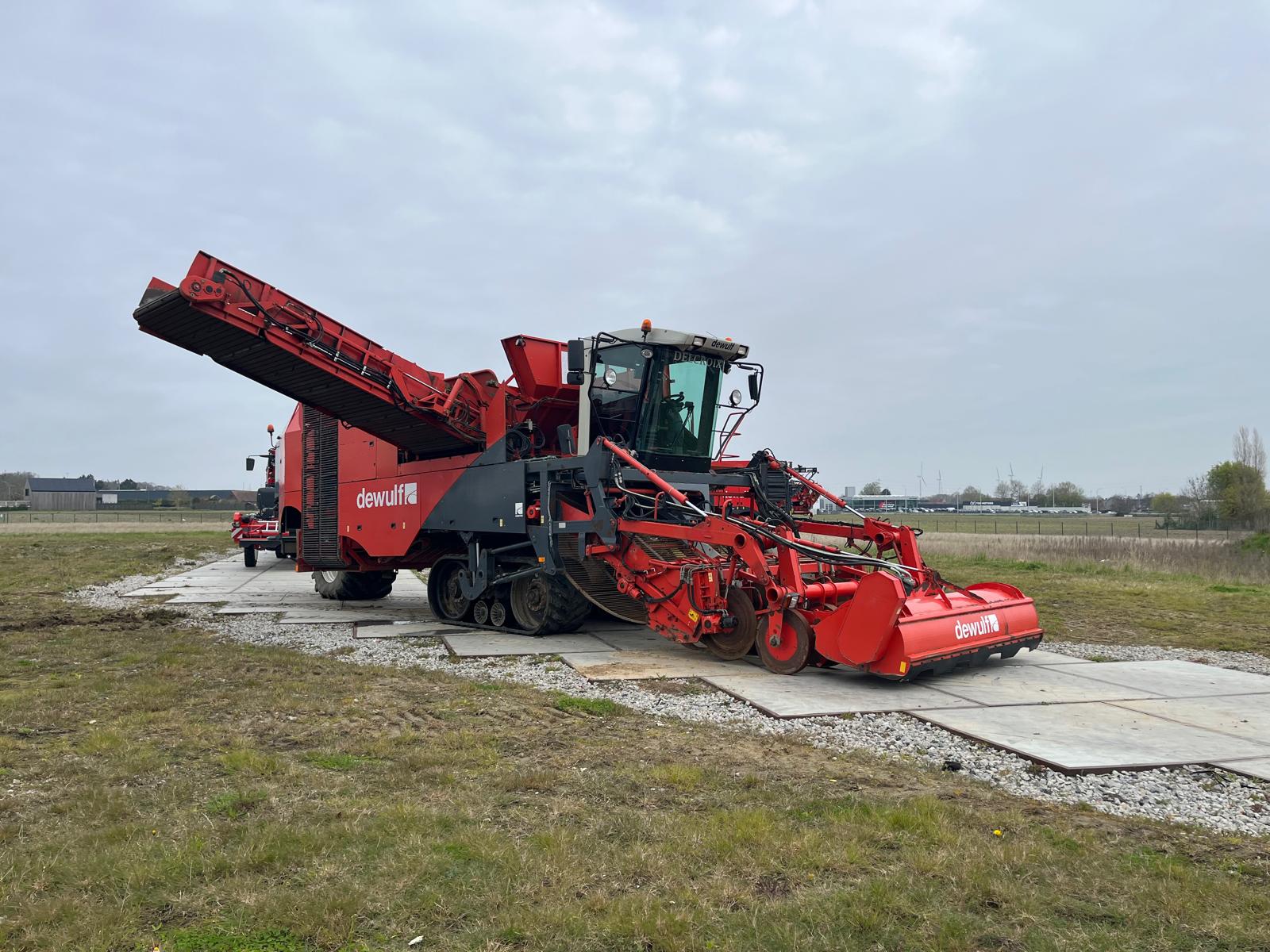

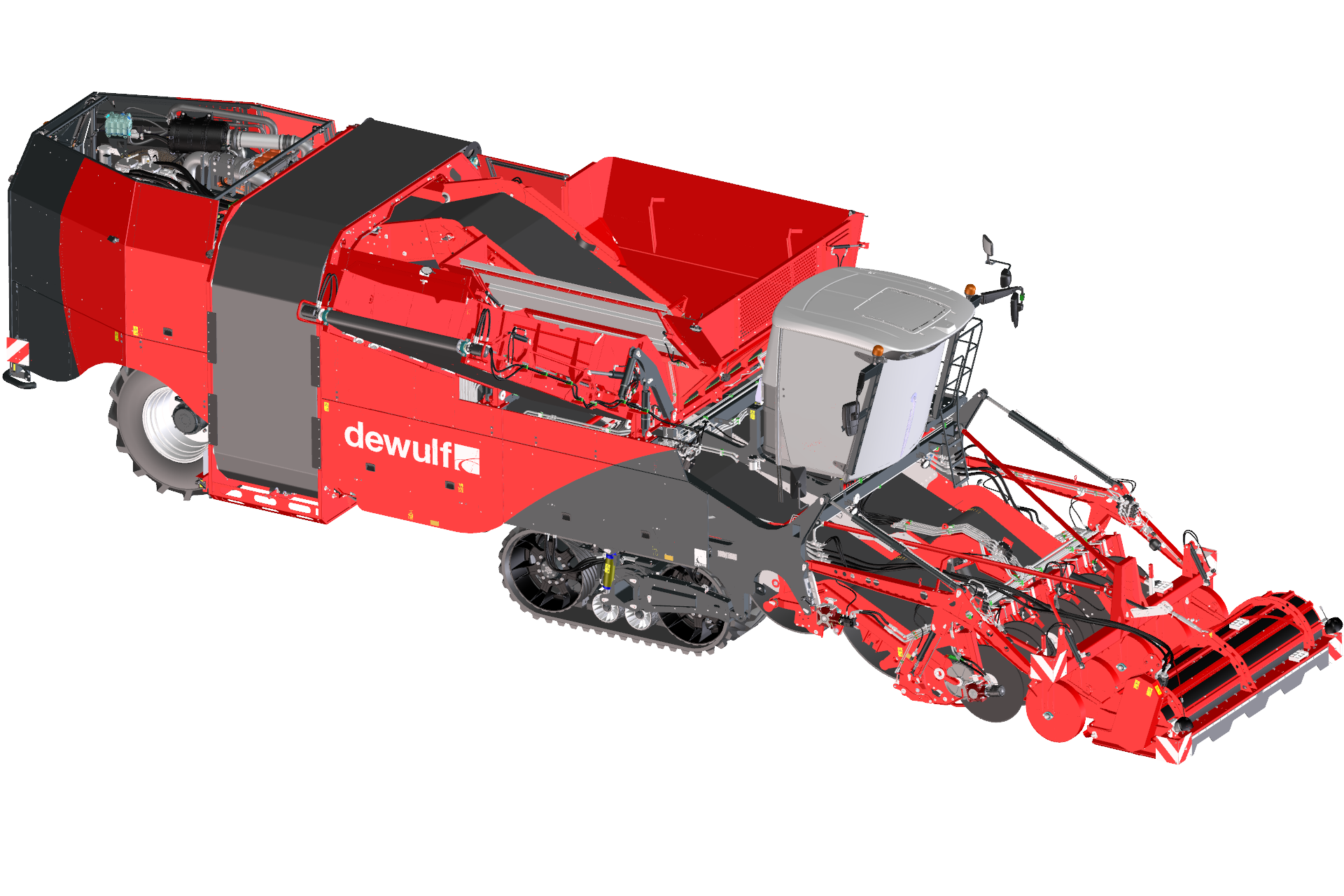

The Kwatro is a self-propelled 4-row sieving harvester that combines frontal harvesting with a conventional sieving path, a hedgehog conveyor and Flexyclean 2.0. Over the years, the Kwatro has built a strong reputation as the master of the field, anytime and anywhere.

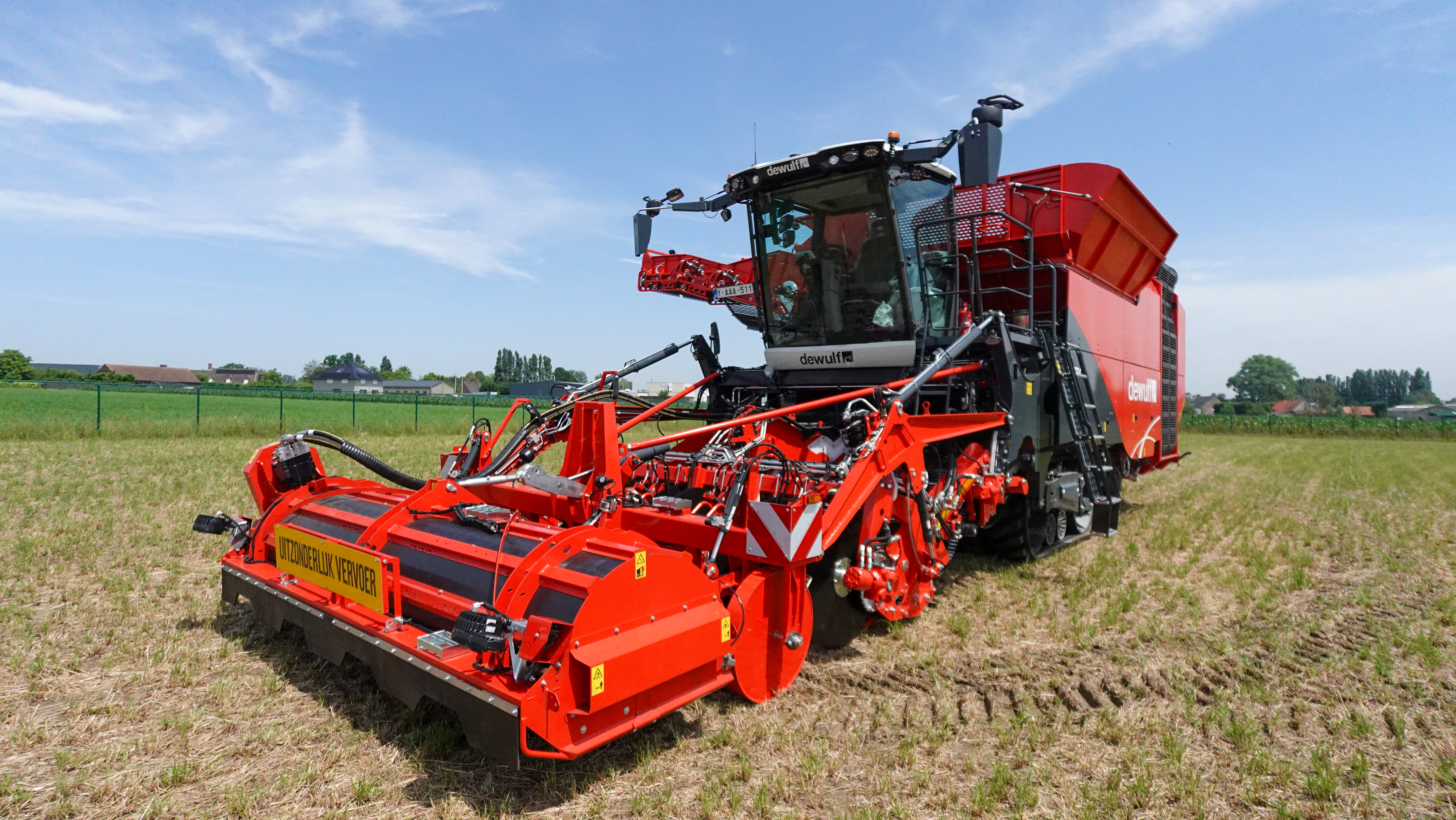

Thanks to its high-quality frontal harvesting concept, potato ridges remain intact and the harvester benefits from outstanding stability. The harvesting unit is equipped with the latest technologies to ensure harvesting is as efficient, comfortable and crop-friendly as possible.

Master of the field, anytime, anywhere

With the optional Level X packages, sensors, data and smart automation support the operator in achieving consistent quality and maximum harvesting performance.

The latest X11 cab provides a comfortable and intuitive working environment during long harvesting days. The Kwatro is powered by a 550 hp Scania engine with a high-capacity cooling system to handle even the most demanding harvesting conditions.

More capacity, more crop friendliness

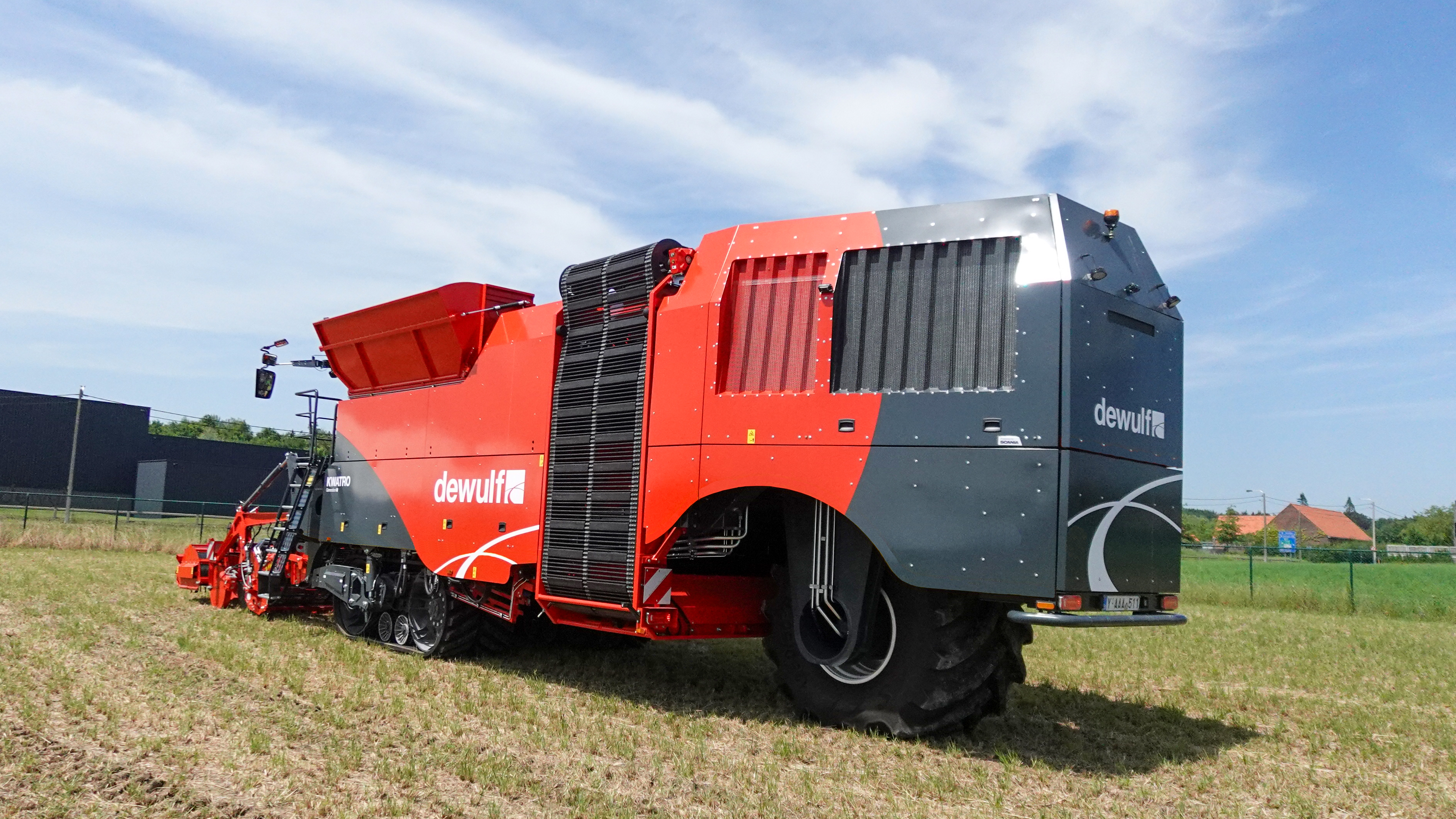

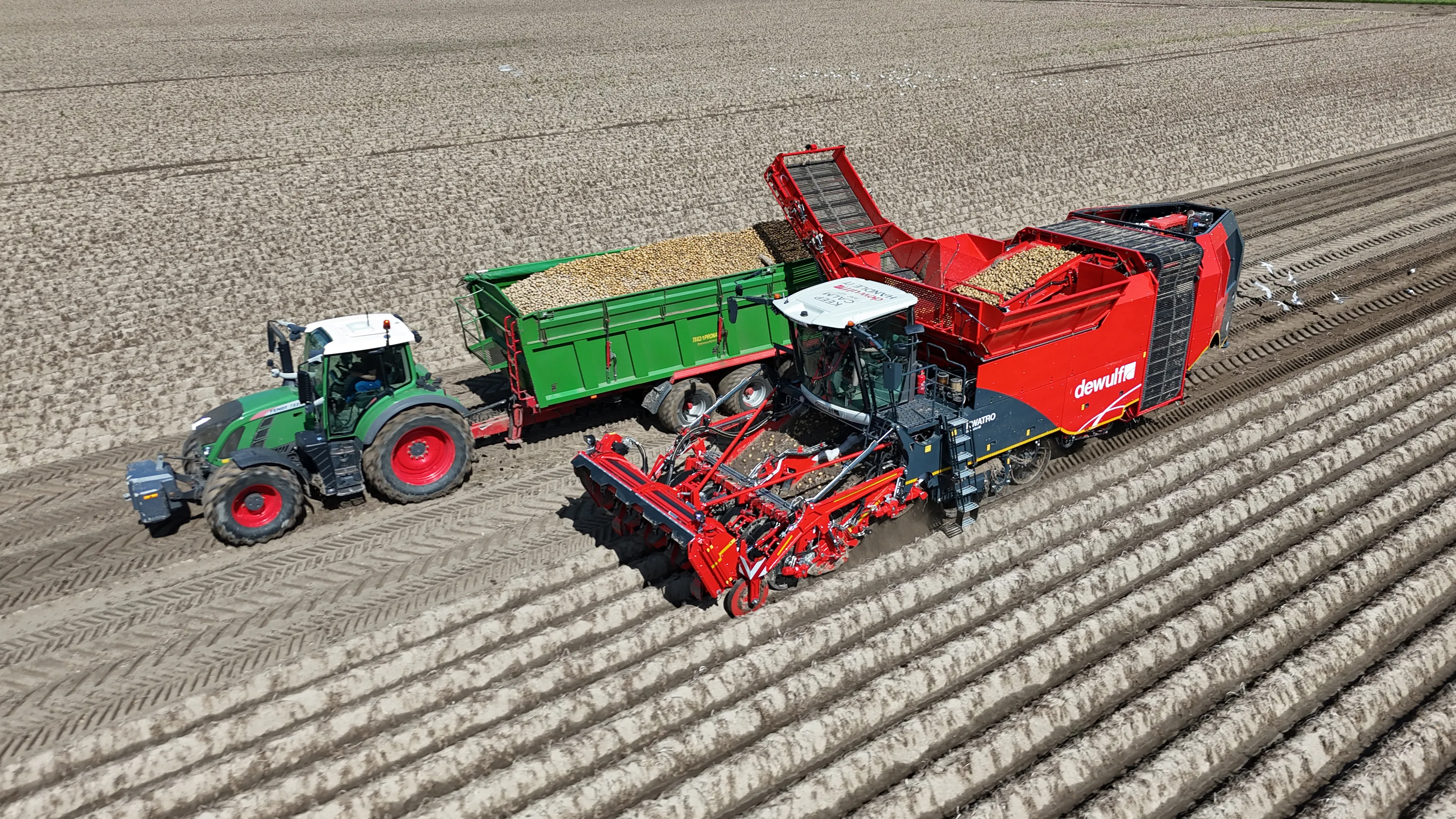

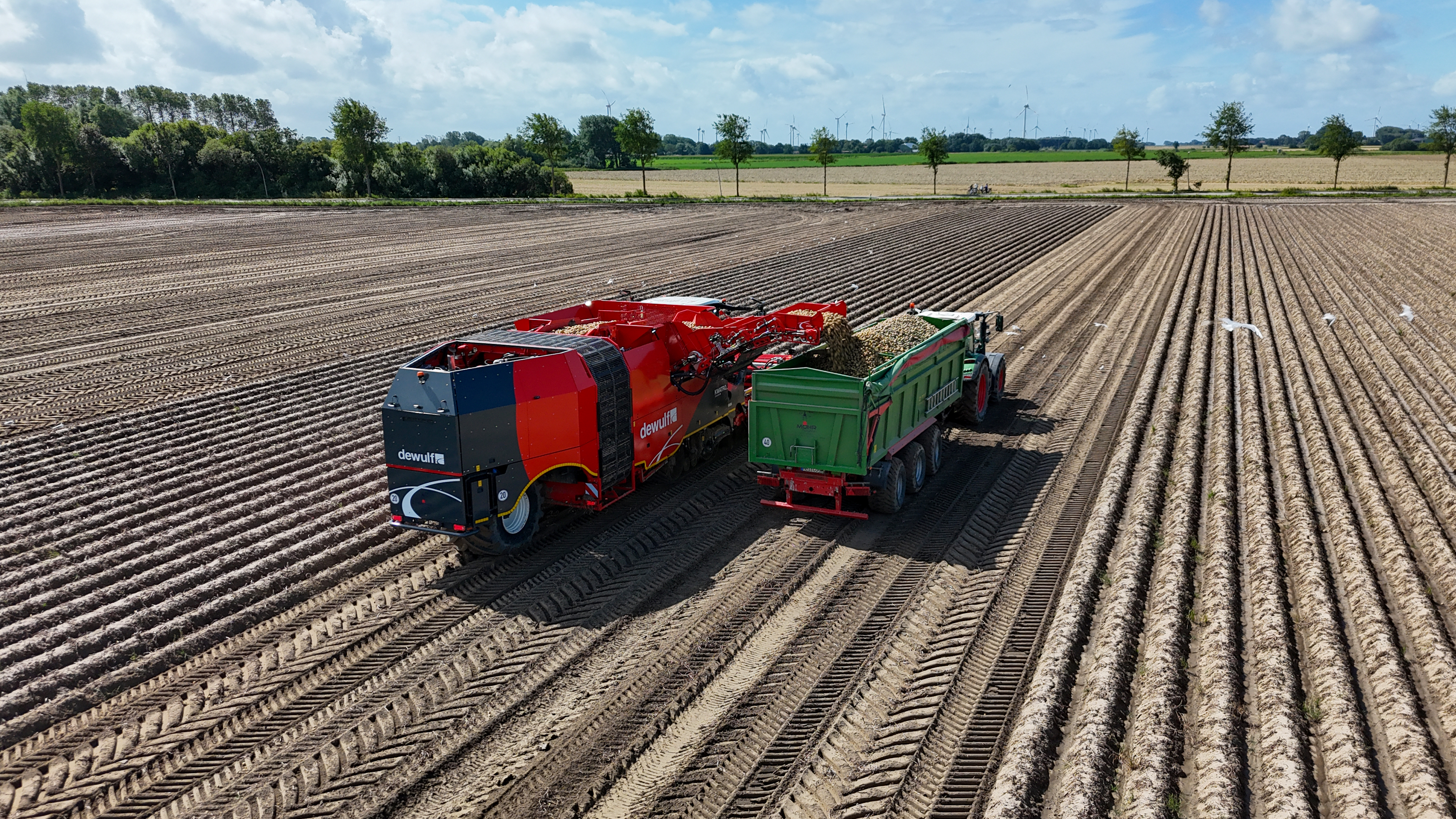

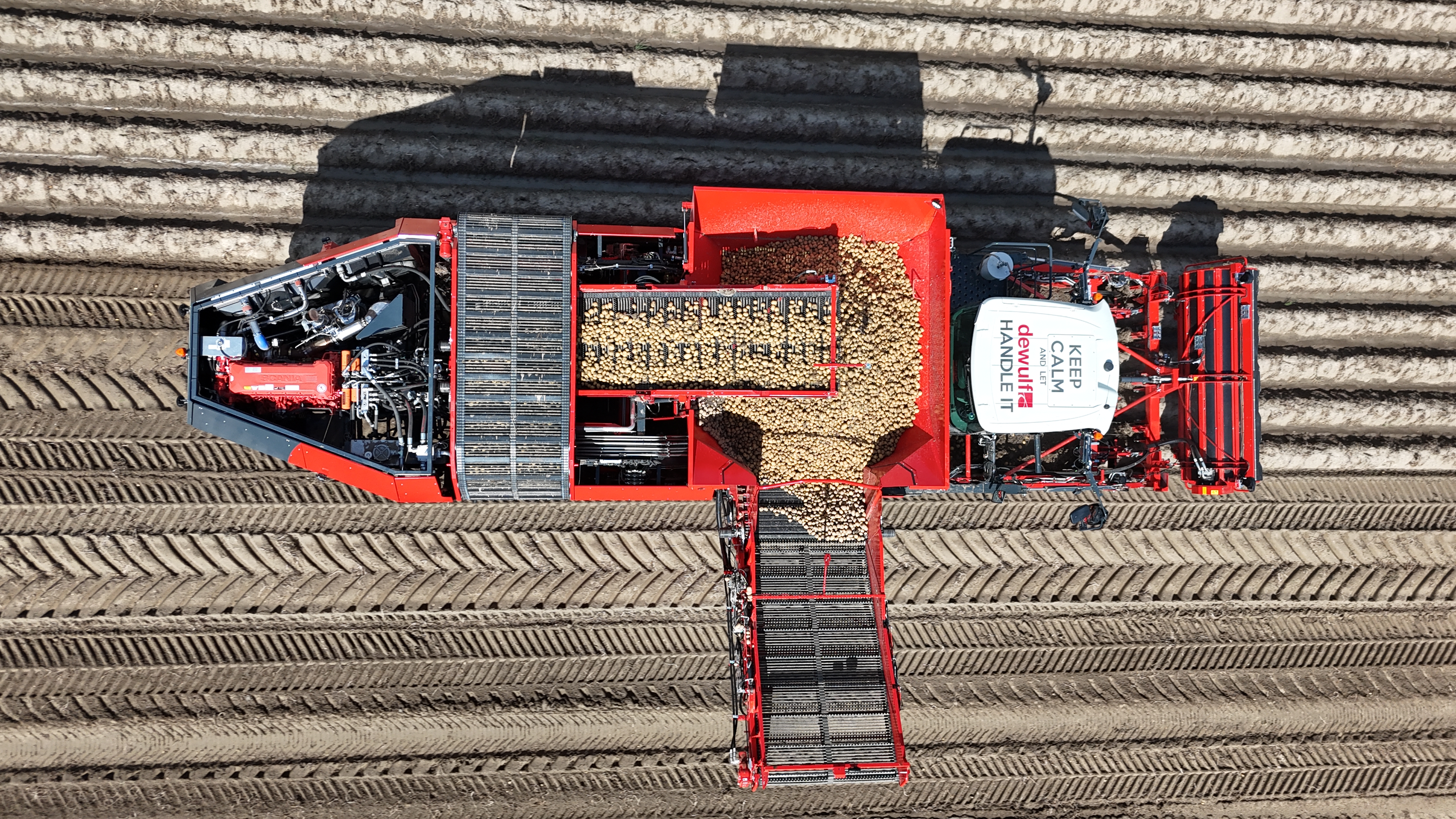

The 12-ton bunker has been designed with maximum crop friendliness in mind. Thanks to the absence of a transfer roller and funnel construction, the crop is handled exceptionally gently during unloading. The discharge elevator with bar web provides additional cleaning during unloading.

■ = standard
o = Optional
- = Not applicable

Harvesting unit

Width of digger web [mm]	2 x 1460
Hydraulically driven cutting discs	■
Haulm intake rollers	■
Spray track detection	o
Truck spot	o
APC (Automatic Pressure Control)	■
Syncro Flow	■
DAS (Dewulf Automatic Steering)	■
ADC (Automatic Depth Control)	■

Sieving chains

Length digger web [mm]	1870
Length sieving conveyor 2 [mm]	3250
Length sieving conveyor 3 [mm]	2280

Haulm separation

Haulm chopper with ADC	■
Haulm chopper with side discharge	o
Haulm roller	■

Cleaning

Rotating agitator in the digger web	o
Two agitators in sieving web 2	■
Agitator in sieving web 3	■
Hedgehog unit	■
Flexyclean^®2.0	o

Dimensies

Total length during harvesting [mm]	14 892
Total length during transport [mm]	14 090
Total width [mm]	3500
Total height [mm]	4000
Weight from [kg]	27 750
Tracks	2 x Claas tracks (900 mm x 2950 mm)
Extra wheel axle between the tracks	o
Rear wheel	Mitas 1250/50 R32 (1250 x 1858 mm): o
