P3CL Profi

Mounted 1-row top lifting harvester with hydraulic box lift

Compact, high performance box filler

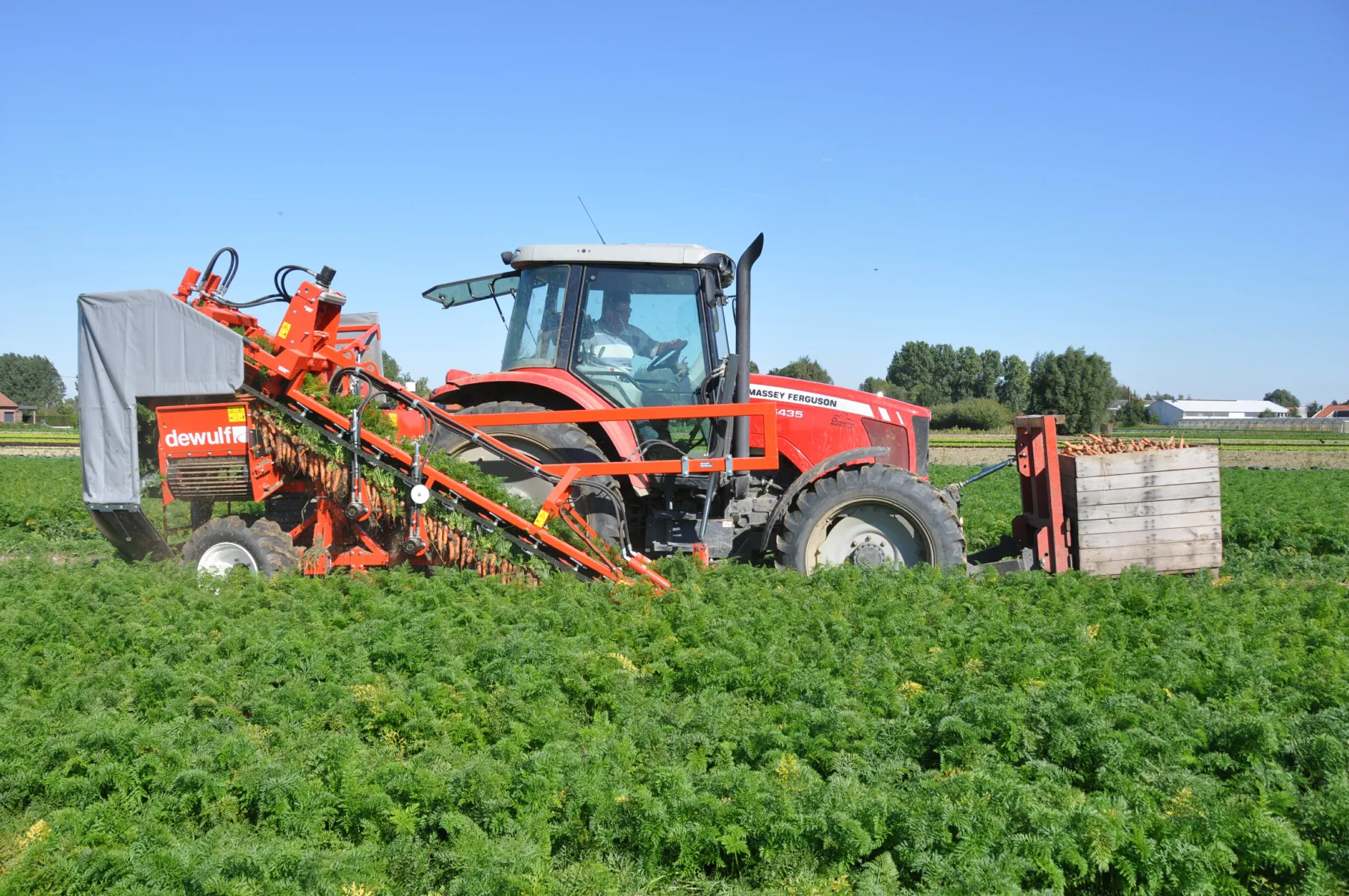

The P3CL Profi is a mounted 1-row top lifting harvester with hydraulic box lift. This makes the harvester ideally suited for unloading directly into boxes. The hydraulic box lift makes it incredibly easy to switch boxes. The accompanying support roller of the top lifting harvester is easily retractable, reducing the road transport width to just 3264 mm. With an optional sorting platform you can inspect the product, if desired. The keypad allows you to operate the cross conveyor, the lift system and the hydraulic fall breaker.

The heart of a Dewulf top lifting harvester

The top lifting harvesters produced by Dewulf are made with high-quality, wear-resistant standard components. The bearings of each cutters set is hermetically sealed using ‘Labyrinth Sealing’. This provides the highest degree of durability available on the market. Each cutters set is driven by a maintenance-free ‘Gearbox Drive’: two heavy-duty pinions ensure perfect synchronisation of the knives.

Working with pleasure means working faster

The intuitive operating console makes working with a mounted top lifting harvester from Dewulf particularly enjoyable. The console was specially designed to enable the user to harvest a perfect product with a minimum of operations. Pictograms make it easy to see which function is available and ready for use. The operating console communicates via CANBUS for the Profi models.

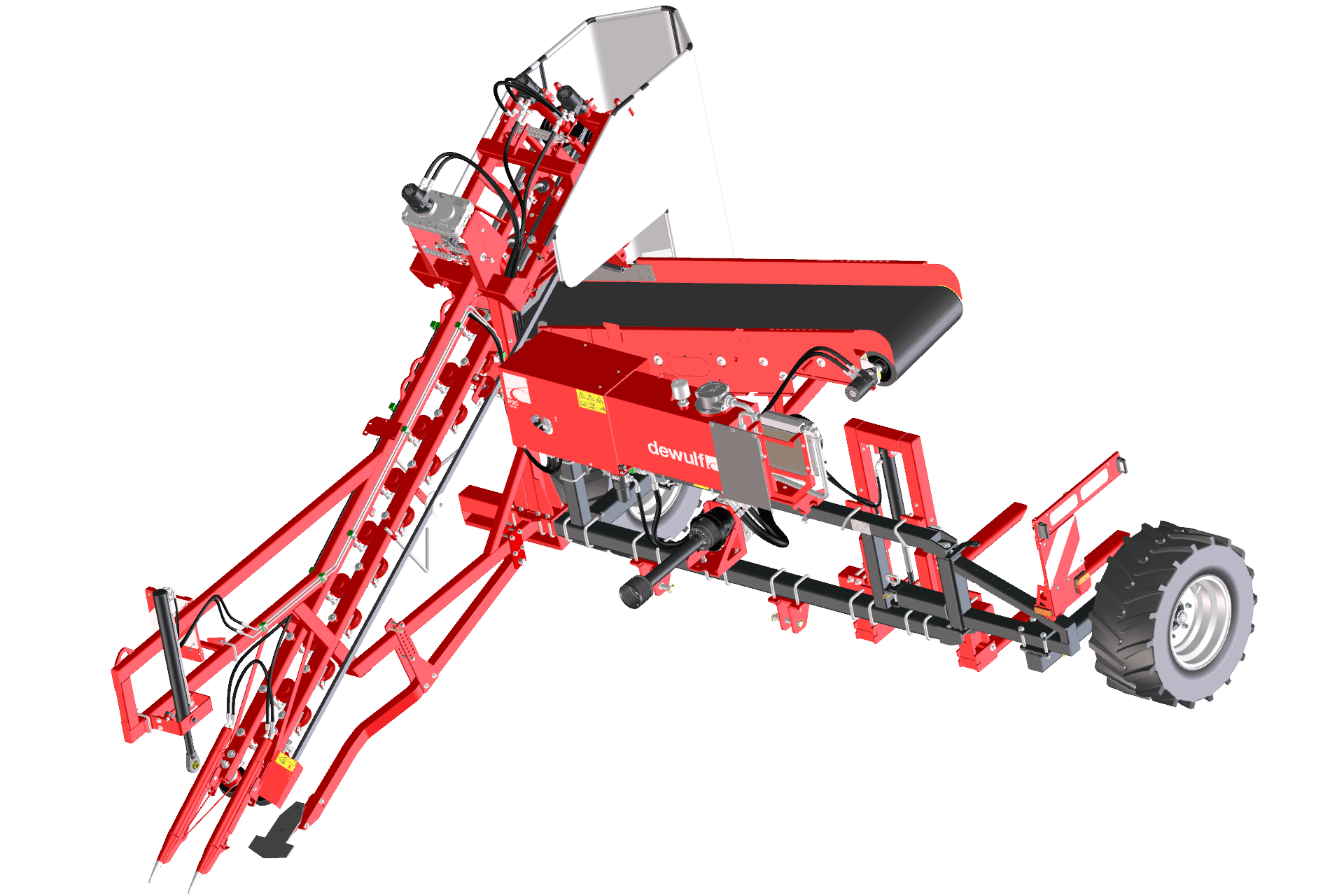

Also available with sieving belt unit

The P3CL Profi is also available with a sieving belt unit instead of the standard lifting belt unit. This so-called 'winter channel' is extremely suitable for harvesting potatoes, or root crops of which the foliage is no longer strong enough to be gripped by a lifting belt, for example due to the weather conditions.

P3CL Profi

Why choose for P3CL Profi

  • Unloads directly and easily into boxes
  • Hermetically sealed, durable cutter bearings (Labyrinth Sealing)
  • Maintenance-free, perfectly synchronised cutters drive (Gearbox Drive)

Configure your machine

Create the P3CL Profi based on your preferences and requirements. Save your result and request a quote in 1 click!

To the configurator

Photo gallery

Technical specifications

  • ■ = standard
  • o = Optional
  • - = Not applicable
Length of the harvesting belts [mm] 8000
Share protection with shear bolt o
Torpedoes ■ : fixed / o : rotary
Synchro Flow o
ADC (Automatic Depth Control) o
Automatic hydraulic belt tensioners o
Hydraulically driven roller below cutters o
Harvesting share for red beet or celeriac o
Width of cross conveyors [mm] 610
Sieving harvesting unit instead of harvesting belt unit o
Sorting platform o



Rotary cleaners below the harvesting belts o
Hydraulic duo agitator in the cross conveyor o



Hydraulically adjustable ■
Fall breaker at the end of the cross conveyor ■



Minimum tractor power [hp] 60
PTO drive shaft 540 rpm



P3CL Profi is suited for these crops:

Carrots

Carrots

Red beet

Red beet

Celeriac

Celeriac

Parsley root

Parsley root

Parsnip

Parsnip
