High capacity and quality

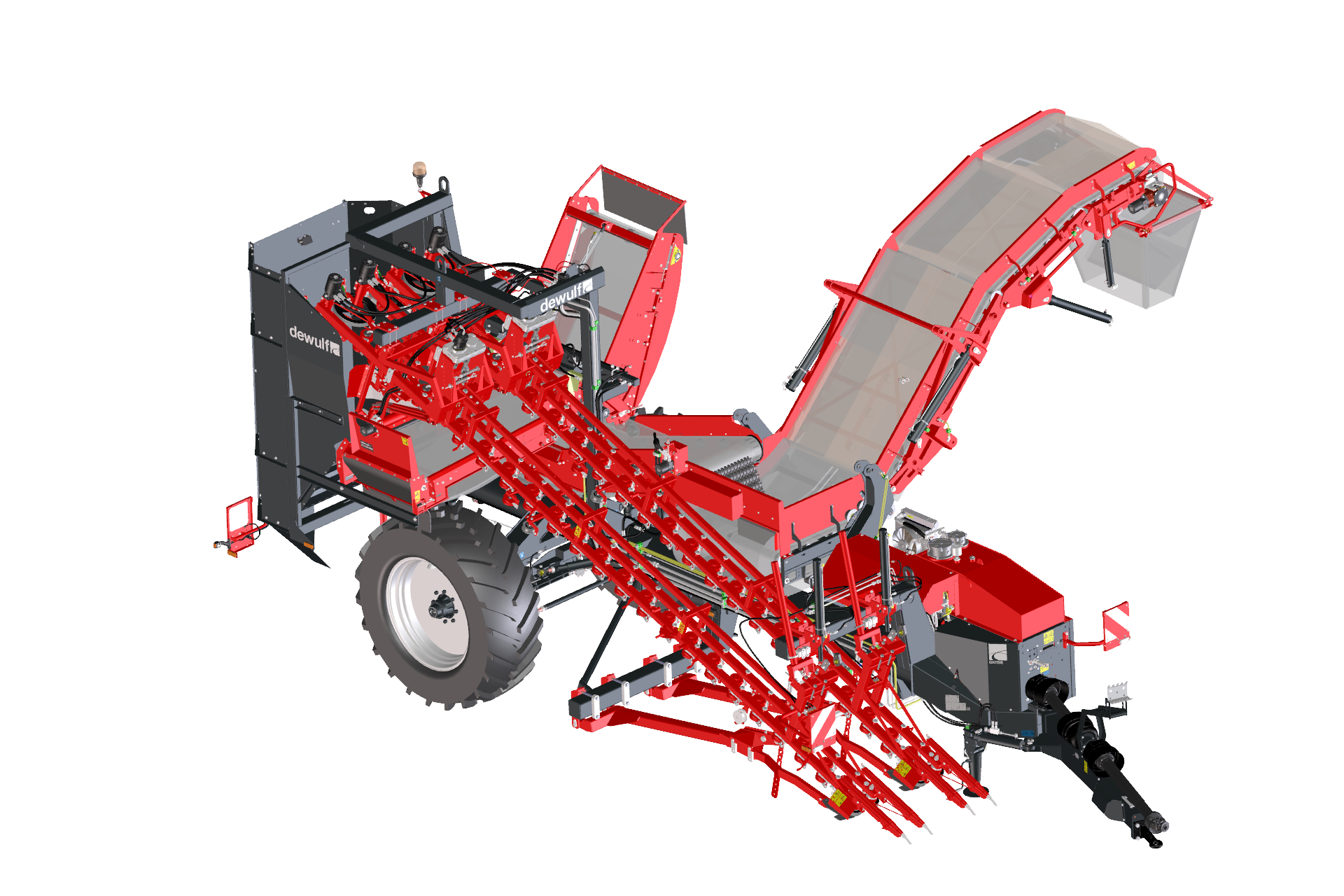

The GKIISE is a trailed 2-row top lifting harvester with hedgehog unit and discharge elevator. Downstream of the cutters set, the product is transported further by an 800 mm wide cross conveyor to the hedgehog unit. Due to the large contact surface of the hedgehog belt (1000 x 1680 mm), an unsurpassed cleaning capacity is ensured. The product is conveyed from the hedgehog unit to the discharge conveyor. A distributor is mounted at the end of the discharge conveyor that ensures an even distribution via the discharge elevator.
Perfect topping result starts with the pick-up
With the 14,000 mm long super-grip profile harvesting belts, the carrots are suspended uniformly and accurately in the harvesting belt unit. The ‘Floating Shares’ are a unique feature: two individual harvesting elements with independent harvesting shares, whereby maximum stability is guaranteed, even at high driving speeds.
The heart of a Dewulf top lifting harvester
The top lifting harvesters produced by Dewulf are made with high-quality, wear-resistant standard components. The bearings of each cutters set is hermetically sealed using ‘Labyrinth Sealing’. This provides the highest degree of durability available on the market. Each cutters set is driven by a maintenance-free ‘Gearbox Drive’: two heavy-duty pinions ensure perfect synchronisation of the knives.
Ease of working means quick working
Using the control-unit, it is possible to view and adjust all settings. When the driver wants to focus entirely on the intake, a remote control can optionally be provided for tractor drivers that ride along in order to operate the discharge elevator.
GKIISE
| 2-row |
| Cross conveyor downstream of the cutter set |
| Hedgehog web |
| Discharge conveyor |
| Discharge elevator |

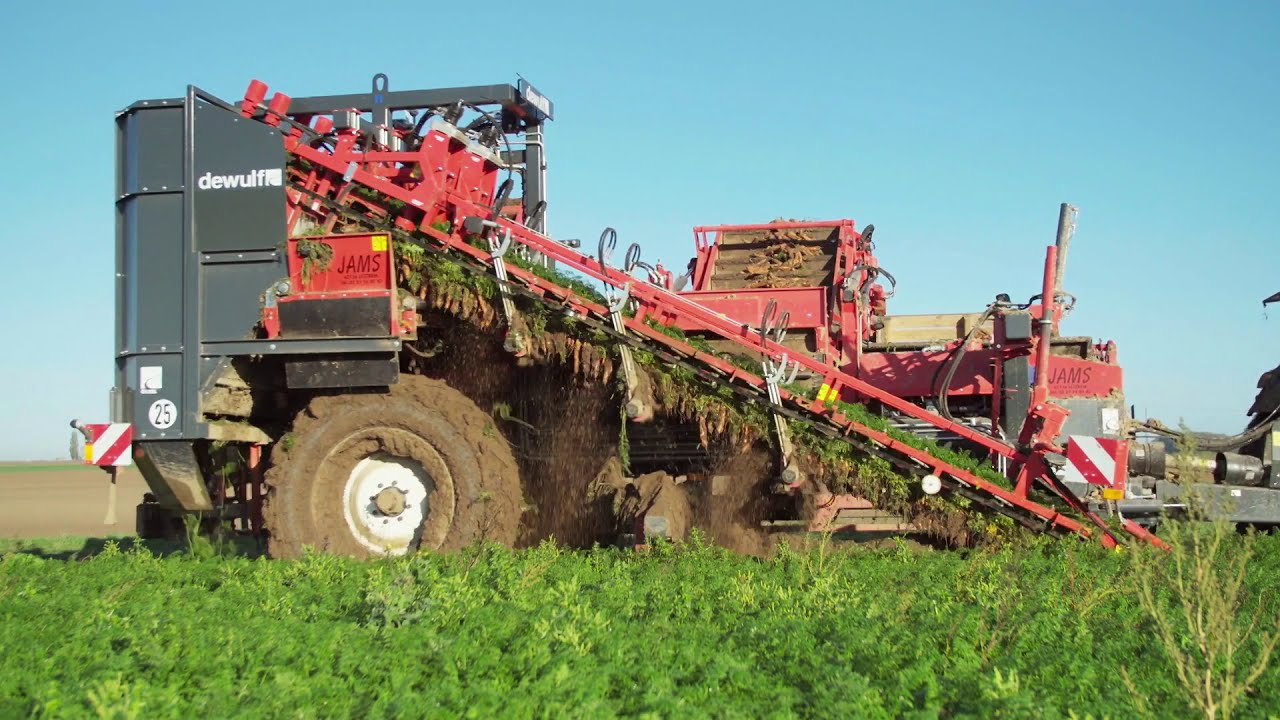

See the GKIISE in action
Why choose for GKIISE
- Perfect pick-up and topping result (Floating Shares)
- Hermetically sealed, durable cutter bearings (Labyrinth Sealing)
- Maintenance-free, perfectly synchronised cutters drive (Gearbox Drive)
Trailed 2-row top lifting harvester with hedgehog unit and discharge elevator
Configure your machine
Create the GKIISE based on your preferences and requirements. Save your result and request a quote in 1 click!
Photo gallery
Other trailed
Technical specifications
- ■ = standard
- o = Optional
- - = Not applicable
| Share arm protection | o |
| Automatic greasing system for cutters set | o |
| Hydraulically driven rollers: 1 below each cutter set + 1 entrance roller of the haulm cover | ■ |
| Hydraulically driven entrance roller of the cross conveyor | ■ |
| 2 hydraulically driven rotary torpedoes per element | o |
| Synchro Flow (Dewulf Synchronisation Control) | o |
| ADC (Automatic Depth Control) | ■ |
| DAS (Dewulf Automatic Steering) | o |
| Rotary belt cleaners at the end of the harvesting element | o |
| Rotary cleaners below the harvesting belts | o |
| Hedgehog unit (1000 x 1680 mm) | ■ |
| Hydraulic duo agitator in cross conveyor | o |
| Width [mm] | 1200 |
| Discharge height [mm] min/max | 1500/3800 |
| Fall breaker or loading chute at the end of the discharge elevator | o |
| Drive | 1 LS-pump, 1 gear pump, oil cooler |
| PTO drive shaft | 540 rpm |
| Hydraulic wheel drive (2 x Poclain MSE11: 2.6 tonnes @ 330 bar) | o |
| Length [mm] | 9551 | ||
| Width [mm] | 3288 | ||
| Height [mm] | 4000 | ||
| Weight [kg] | 7665 | ||
GKIISE is suited for these crops:
Carrots
Red beet
Celeriac
Parsley root
Parsnip
